Schematics

These were not colored originally, so please excuse the rough colorization.

A/C: Vacuum and control wire circuit



A/C: Climate control wiring schematic



Wiring diagram, front half of car. Click for larger version:

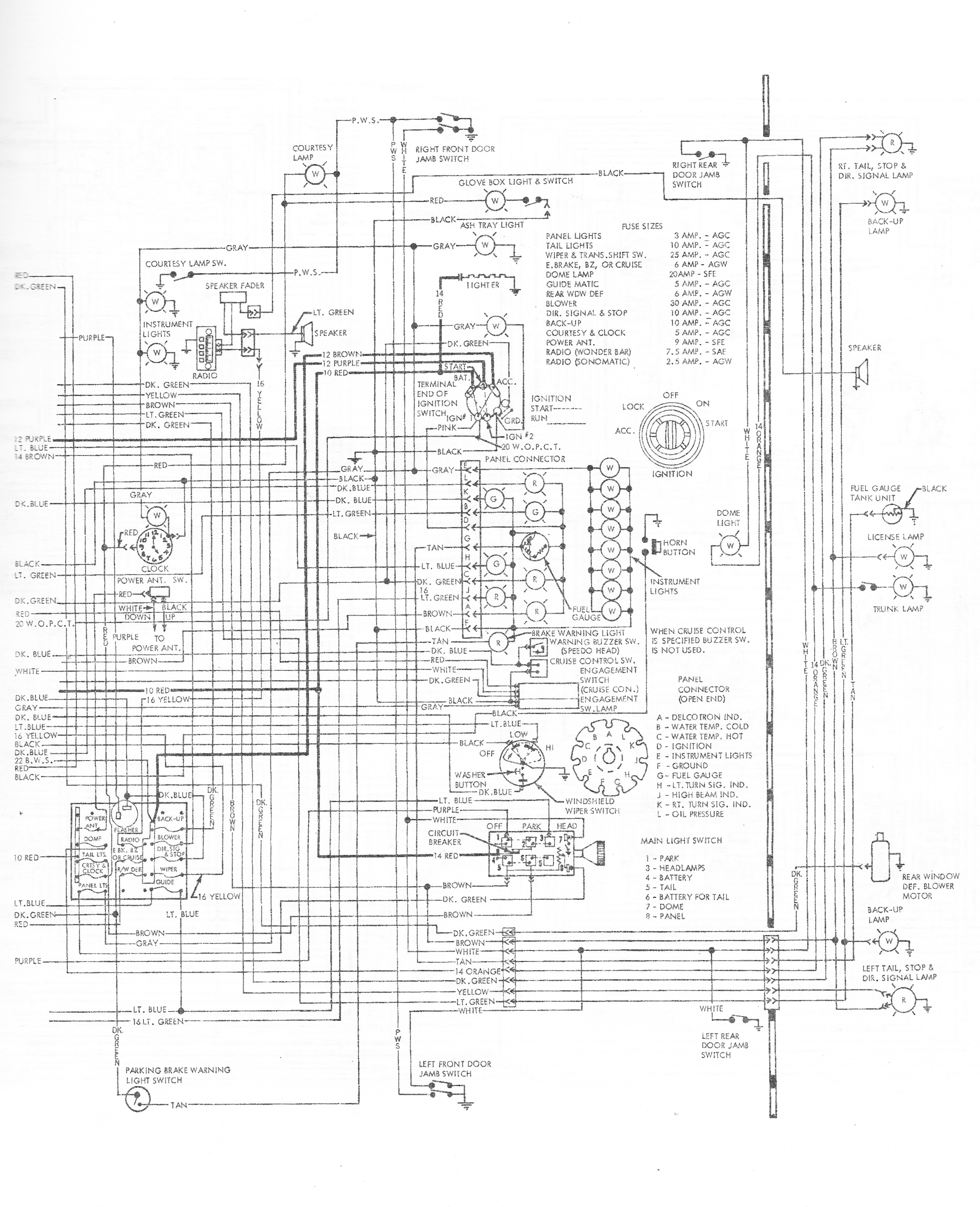

Wiring diagram, rear half of car. Click for larger version:

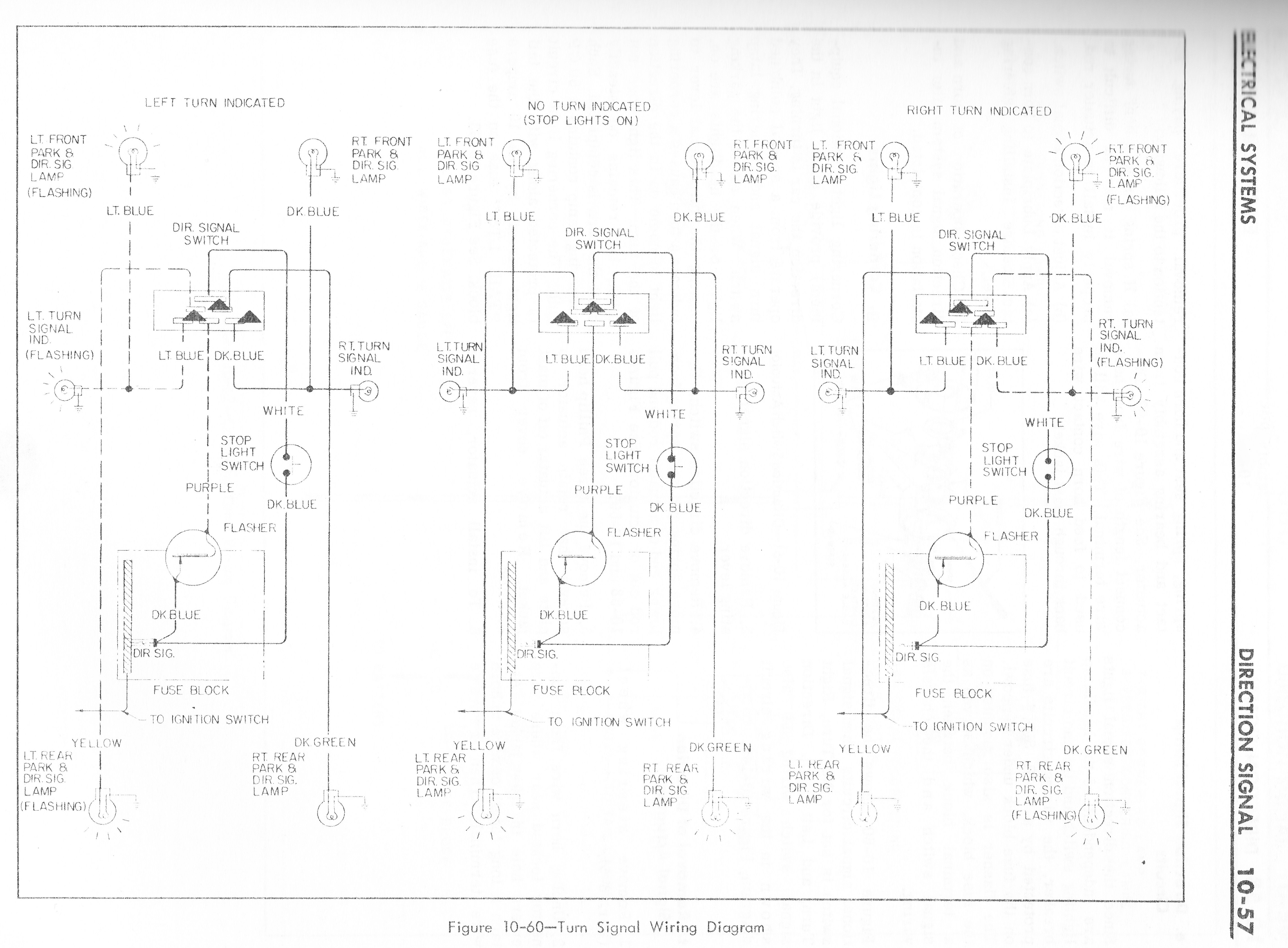

Click for directional signal wiring diagram
